Due to the different production processes and product attributes of traditional mirrors and smart mirrors, traditional mirrors focus on a highly customized design concept, while smart mirrors propose relative customization. Let's introduce the differences between these two types and how smart mirrors should be designed will make more sense.

One，the production process of traditional mirrors and smart mirrors

Traditional mirror making process:

1.Mirror surface: after making the whole mirror, the glass can be cut and edged according to actual needs.

2.Structure: the traditional mirror has few electronic accessories, and does not need to consider high-level waterproof and dust-proof. It generally achieves IP44 level, and the structure is relatively simple.

Smart magic mirror production process:

1.Mirror surface: the original glass sheet is made into a non-conductive semi-lens by coating. Because of the display area, the smart magic mirror cannot be cut and used directly like a traditional mirror. Usually, it is cut to size and shape according to the needs, and then made. The silk screen printing process forms the ink layer behind the mirror through the silk screen printing process. This process also constitutes one of the reasons why the smart magic mirror will not be oxidized and rusted. As long as the size is changed, it will involve re-opening the screen printing screen. The screen printing screen cost is usually 1200-2500 yuan per size, and the production time is 2 days. If a certain amount cannot be formed, it will be difficult for the entire supply chain to cooperate. A small amount of customization costs a lot more.

2.Structure: Display, touch, smart host, sensor and other accessories need to be installed in the smart mirror, which needs to be supported by a precise structure. The premise of ensuring stability is to ensure the consistency of the product as much as possible. The structural parts of the smart mirror are basically The mold is completed, including the wires, which are all customized, so that such standardized products can ensure the consistency and stability of the products.

Two, how to customize the smart mirror in the project

1.The model should be as unified as possible. Taking a project of 1,000 sets as an example, it is best to control it within 5 models, and 3 is the best. This is convenient for production and model management, and is also conducive to on-site installation management and after-sales management.

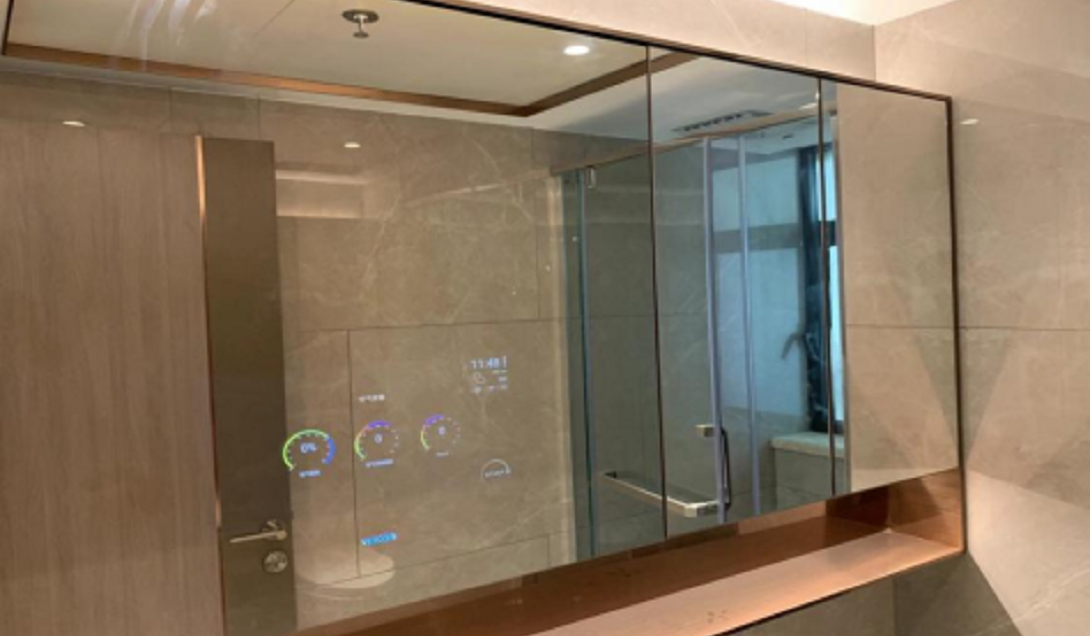

2.If it is a mirror cabinet project, you can use the smart magic mirror as the main cabinet door to make a standard size, and then use the traditional mirror cabinet to supplement the size. (As shown below)

Three，notes

It is necessary to check and sign the drawings, confirm whether to open the door on the left or the right, communicate with the design department of Party A to reserve three-plug potential, it is best to suggest to reserve the network port, the color and thickness of the cabinet door frame, etc. The frame of the magic mirror can be provided by the magic mirror party. After confirming the color, it can also be provided by the cabinet factory designated by Party A, and the picture will be drawn by the micro frame. The cabinet factory can produce it according to the micro frame paper, which can maximize the guarantee of color. Consistency with the cabinet. At the same time, it is necessary to communicate with the cabinet manufacturer about the tolerances and other details.

-----------------------------------------------------------------------------------------------------------------------------------
